200L Drum Heating Blanket description

Condition:New
Type:Electric Heater
Power Source:Electric
Place of Origin:Guangdong, China
Brand Name:Hengxin
Dimension:1860x860mm
Weight:6.5 KG
Voltage:220V/110V
Warranty:1 Year
Working Temperature Range:-30~150ºC
Material:High Temperature Resistance Silicone Cloth+Ni-Cr Alloy Heating Wires
Power deviation:±5%
Supply Ability:50000 pcs per month
Packaging Details:Carton
Certificates:CE,RoHS,REACH

Product	200L Drum Heating Blanket
Voltage Range	220V or 110V
Rated Power	100-2500W/m2(can be customized)
Heater Size	1860x860mm or customized
Insulation Material	High Temperature Resistance Silicone Cloth
Heating Material	Ni-Cr Alloy Heating Wires
Weight	6 kgs
Temperature range	-30ºC~150ºC

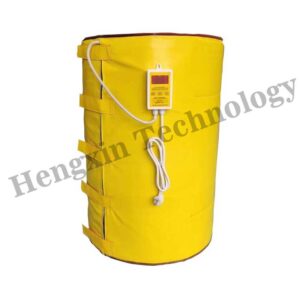

200 L Drum Heating Blanket – Efficient Heating for Barrels, Drums & Containers

The Drum Heating Blanket is the ideal solution for safely and efficiently heating liquids, chemicals, oils, and other viscous materials stored in metal or plastic drums. Designed to wrap around the exterior of a 55-gallon (200L) drum, this flexible heating blanket ensures uniform heat distribution without the risk of localized overheating.

Using advanced silicone cloth, the blanket delivers consistent, controlled warmth—perfect for maintaining flow, reducing viscosity, or preventing freezing in industrial environments.

Key Features of 200L Drum Heating Blanket :

Fast & Even Heating
Heats the entire surface of the drum uniformly, ensuring stable temperatures and preventing product degradation.
Adjustable Thermostat Control
Built-in temperature controller (often adjustable from 0°C to 150°C or higher) for precise heating of sensitive materials.
Flexible & Durable Construction
Made from industrial-grade silicone or polyester fabric, resistant to moisture, chemicals, and mechanical stress.
Easy Installation & Removal
Lightweight, portable, and equipped with quick-release straps or Velcro closures—ideal for frequent use across multiple drums.
Safe for Metal & Plastic Drums
Available in low- and high-power versions to suit both steel and HDPE drum types.

Typical Applications:

Oil & Lubricant Warming
Reduce viscosity and ensure easy pumping or pouring.
Resin & Adhesive Preheating
Prepare materials to the right temperature before processing.
Food & Beverage Production
Keep honey, syrup, or oils flowable during bottling and packaging.
Chemical & Pharmaceutical Use
Maintain safe, usable temperatures for temperature-sensitive substances.
Cold Weather Protection
Prevent freezing or solidification in unheated warehouses or outdoor work environments.

Technical Specifications for Drum Heating Blanket :

Voltage: 110V / 220V
Power: 300W–2000W (customizable)
Temperature Range: 0°C–150°C (or up to 200°C for high-temp models)
Material: Silicone-coated fiberglass or polyester
Dimensions: Fits standard 55-gallon (200L) drums (custom sizes available)
Safety: Built-in thermal fuse / Overheat protection

Components of our 200L/55 Gallon Drum/Barrel Heating Blanket

1.Insulation Layer

The insulation layer is made of fiberglass felt, which provides:

Flame resistance and high heat tolerance

High electrical resistance and low dielectric constant

Good resistance to corrosive chemicals, such as acids and alkalis.

Main Technical Parameters

Sound Absorption Performance	Aging Resistance	Temperature Resistance	Thermal Conductivity (at room temperature)	Slag Ball Content	Fire Resistance	Water Absorption
Excellent	Excellent	≤600℃	0.03W/(m·k)	None	Non-combustible	Non-absorbent

2.Outer Layer

The outer layer is made of waterproof and flame-retardant fabric, chosen based on the actual application of the heating blanket. This layer helps:

Protect the blanket from water splashes or small liquid spills in daily use,Enhance safety by providing flame-retardant properties during operation.

3.Heating Layer

The heating layer is made of fiberglass aluminum foil cloth or waterproof flame-retardant fabric.

By default, unless specified otherwise by the customer, aluminum foil cloth is used as the heating surface.

Structure: A fiberglass base layer with an attached aluminum foil

Properties:

High wear resistance

High-temperature tolerance

Acid and alkali resistance

Excellent electrical insulation

Functionality: The aluminum foil layer enhances overall heat conduction, ensuring even temperature distribution across the heating blanket and preventing localized overheating or cold spots.

4. Heating Wire

Core Material: Nickel alloy

Outer Insulation: Silicone rubber

Product Certification: ROHS

Model: Silicone Braided Heating Wire

Electrical Properties:

Voltage withstand: 2000V

Insulation resistance: >100MΩ

Temperature resistance: 200°C

Voltage rating: 600V

Lifespan: Over 10,000 hours

Structure:Silicone heating wire with a fiberglass braided layer

Internal wiring process: Heating wire is wound around fiberglass

Testing Standards:UL758 compliance for heating wires

Bending test: Over 5,000 cycles with no damage (tested according to UL & IEC standards)

Flexibility test: Over 25,000 cycles with no damage (tested according to UL & IEC standards)

Why Choose HENGXIN TECHNOLOGY’s Drum Heating Blankets?

With years of experience in flexible heating solutions, HENGXIN TECHNOLOGY is a trusted supplier of industrial heating products. Our drum heating blankets are:

✅ Manufactured under strict quality control systems
✅ Trusted by clients in oil, chemical, food, and industrial sectors
✅ Backed by fast lead times and excellent after-sales support
✅ Fully customizable for OEM & bulk orders
✅ Durable, portable, and designed for long service life

Whether you’re heating drums in a factory or on a construction site, we offer dependable solutions that are safe, fast, and energy-efficient.

Our Factory

Shenzhen Excellent Hengxin Technology Development Co.,Ltd was established in 2002,our main products are Polyimide/Kapton heaters,PET heater ,Silicone heater,PTC heater and MCH with customized size and shape, with qualified products and sustained relationship with clients,we grow quickly and till now our manufacturing area is 3100 ㎡ with 4 production lines and 32 production machines.In year 2022,our export revenue have made a breakthrough for 6 million US Dollars. Over 100,000 pcs heaters can be made monthly with customized requirement.All of our material composed for the heaters have gained CE certificates.
